RF Controller:
Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED lamps. For instance, point source of light, flexible light strip, led modules, led strings and so on; It belongs to low-voltage DC power input and output with five interfaces, including V+ is extremely common interfaces, the other four for the 4 channels output control interface. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through RF remote control. Especially, it is integrated 4 optional programs for different color type LEDs, contains single color/CW+WW/RGB/RGBW.

Designed as 4-in-1 controller for DIM/CCT/RGB/RGBW constant voltage LED lights.
Max. load: 72W/Channel. No. of Channel: 4. Total Max. load: 288W. Input voltage: 12V/24V.
Memory function, remembers the last stored colour or mode when power is turned on.
Patented  Mesh network: Wireless-sync-control in both static colour and dynamic modes.
4 Zone Control - Controllers placed in different zones can be separately controlled by single remote.

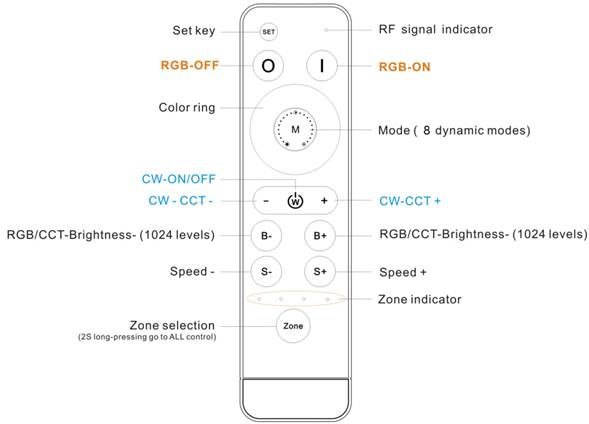

RF Remote Control:
5 in 1 led remote control for DIM/CCT/RGB/RGBW/RGB+CCT Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling different type led lamps.

Designed for DIM/CCT/RGB/RGBW/RGB+CCT LED lights.
Powered by AAA*2
Adopts RF remote control, no need line-of-sight. 4 zones separately control or all-control.
Wireless-sync-control in both static color and dynamic modes, unlimited by remote control distance.
Batch-operation is available for RF code matching/clearing between remote control and receivers.
Perfect control effect, including 1024 static colors(RGB/RGBW/RGB+CCT) and soft dim function.
The brightness of static color is adjustable, 1024 levels in total; the speed of dynamic changes is adjustable, 100 levels in total.
Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
